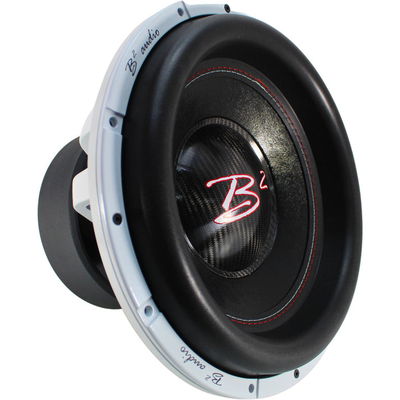

B2 Audio RAGEXL V2 Series 15" 3500W RMS 2-Ohm 3" DVC Subwoofer / RAGEXL15-D2-V2

8 393 DKK / Styck
B2-RAGEXL15-D2-V2 B2

Liknande produkter

TT Technology SW15B
TT Technology SW15B
906,5 DKK 486,5 DKK / Styck
-46%
Apocalypse DB-3515D2R
Apocalypse DB-3515D2R
6 996,5 DKK 5 246,5 DKK / Styck
-25%
Apocalypse DB-SA275D2
Apocalypse DB-SA275D2
2 796,5 DKK 2 096,5 DKK / Styck
-25%
DD Audio Redline 615e D2
DD Audio Redline 615e D2
2 093 DKK 1 743 DKK / Styck
-17%

Specifications:

  • RMS Power Handling: 3500 Watts
  • Max Power Handling: 10,000 Watts / 13.4 HP
  • Nominal Impedance: Dual 2 Ohm
  • Voice Coil Diameter: 3 inches
  • Sensitivity: 87.4 dB
  • Motor Assembly Displacement: 12.6 L / 0.445 cu ft

Thiele & Small

  • Free Air Resonance (Fs): 27 Hz
  • Resistance (Re): 3.8 Ohms
  • Mechanical Factor (Qms): 5.5
  • Electrical Factor (Qes): 0.74
  • Total Factor (Qts): 0.66
  • Equivalent Volume (Vas): 56.4 L
  • Compliance (Cms): 70 um/N
  • BL Factor (BL): 116.1
  • Moving Mass (Mms): 493.3 g
  • Excursion Max (Xmax): 23
  • XMECH: 52
  • SD: 765.1 sq cm

Measurements:

  • Overall Diameter: 15.48 in / 393 mm
  • Mounting Diameter: 13.5 in / 343 mm
  • Bolt Pattern Diameter: 14.5 in / 368.3 mm
  • Overall Depth: 13.622 in /  346 mm
  • Mounting Depth: 11.69 in / 297 mm

Enclosure Suggestions:

Sealed:

  • 50L / 1.77 cu.ft
  • Qtc 0.689
  • F3: 39 Hz

Ported Compact:

  • 82.6L / 2.92 cu.ft
  • Port: 32.52 sq in
  • Length : 17.5 in / 444.5 mm
  • FB: 38 Hz

Ported:

  • 152L / 5.36 cu.ft
  • Port Area: 32.52 sq. in
  • Length: 19.2 in / 487.68 mm
  • FB: 27 Hz
