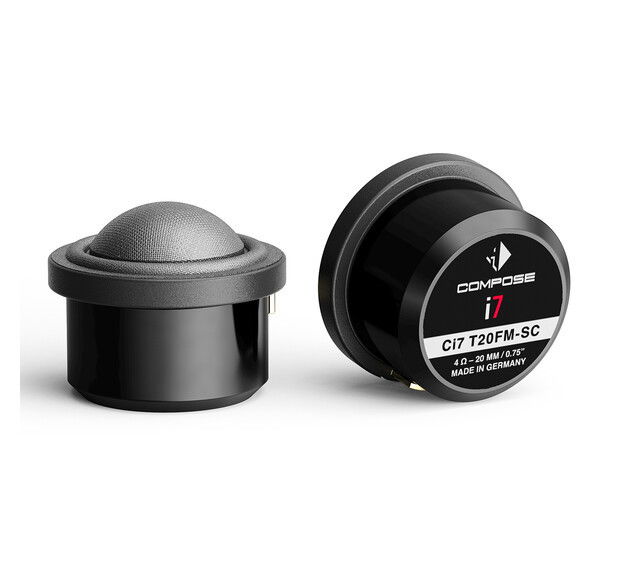

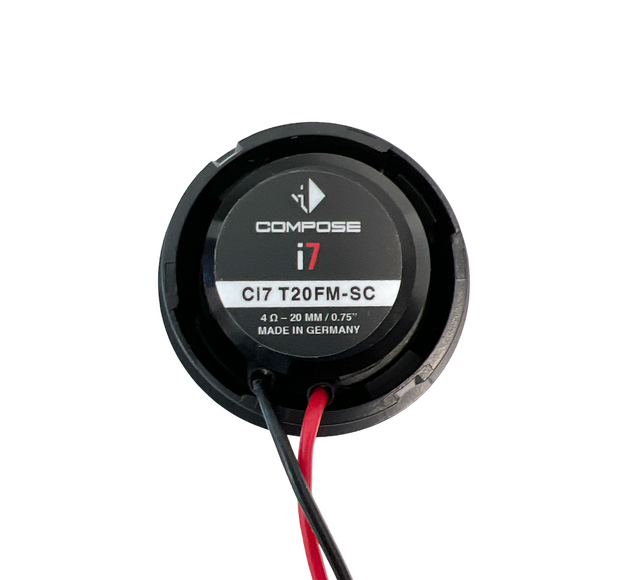

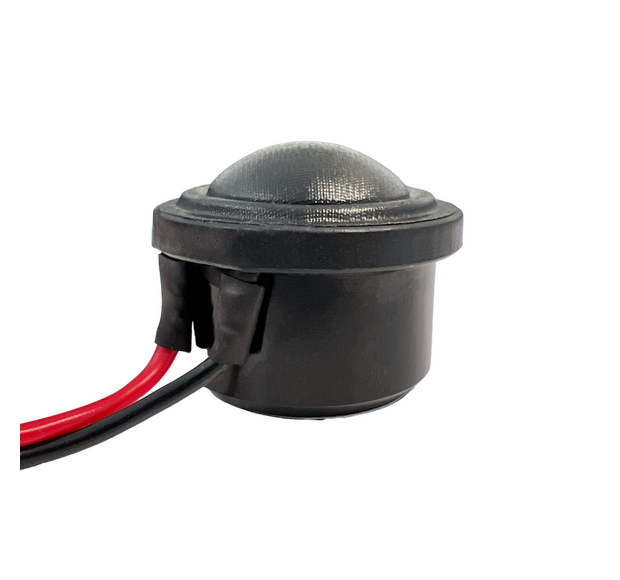

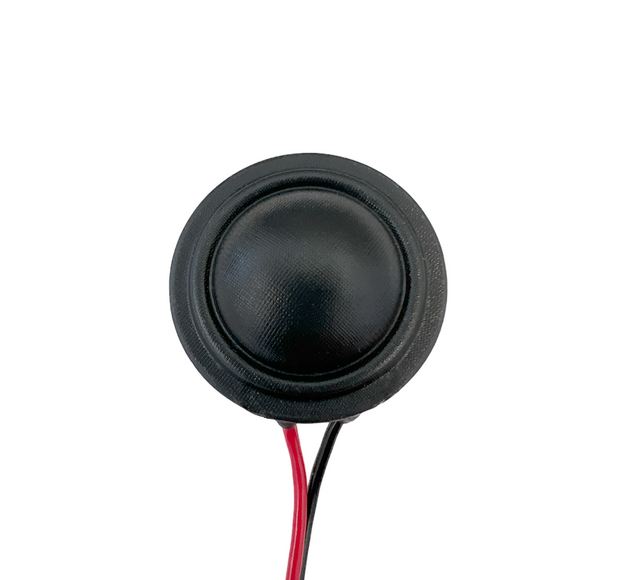

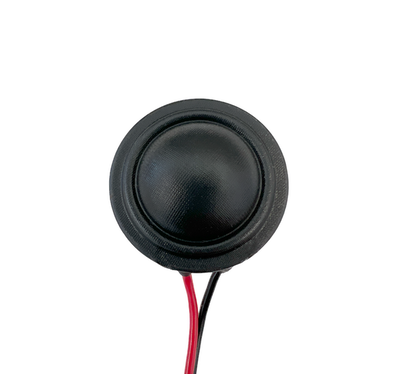

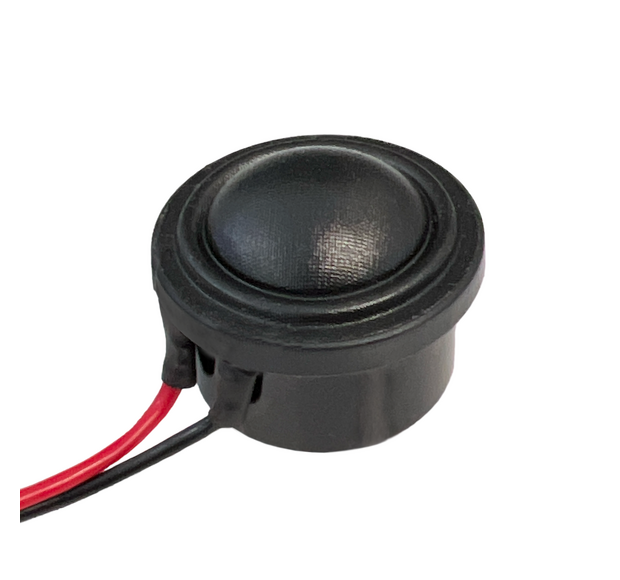

Helix Compose i7 - Ci7 T20FM-SC

Size without housing:
Tweeter outer Ø 32.00
Mounting Ø 27.2mm
Mounting depth: 19mm

Impedance: 4 Ohm
DC resistance: ( Re ) 3.4 Ohm
Frequency response: 1500 Hz - 30000 Hz
Sensitivity ( SPL ): 93 dB @ 2.83V / 1m, 90 dB @ 1W / 1m
Voice coil diameter: 20mm
Cone material: Silk dome with coupling volume

Recommended crossover frequencies for the highpass:

Slope 6dB/octave│minmum crossover frequency 4000Hz

Slope 12 dB /octave│minmum crossover frequency 3000Hz

Slope 24 dB /octave│minmum crossover frequency 2500Hz

Compatibility
FlexMount20

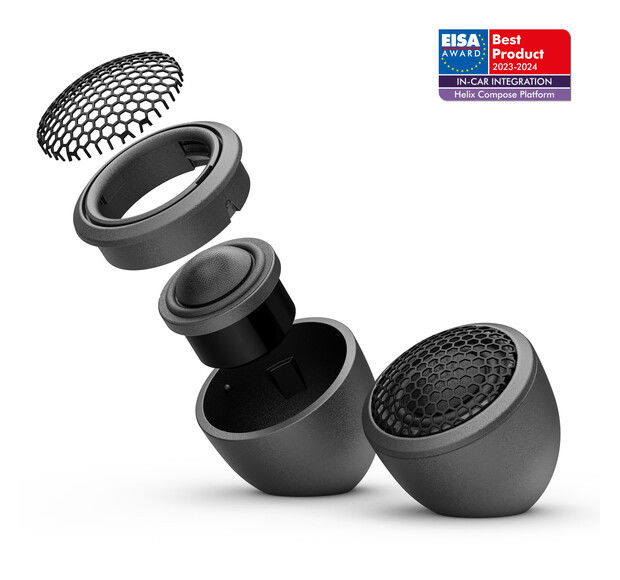

Scope of delivery
2 x Ci7 T20FM-SC
2 x Tweeter flush mount
2 x Tweeter pod
2 x Extension cable
2 x Mounting material
