HELIX CFMK200 POR.1 - Porsche

HELIX CFMK200 POR.1 (FDM)

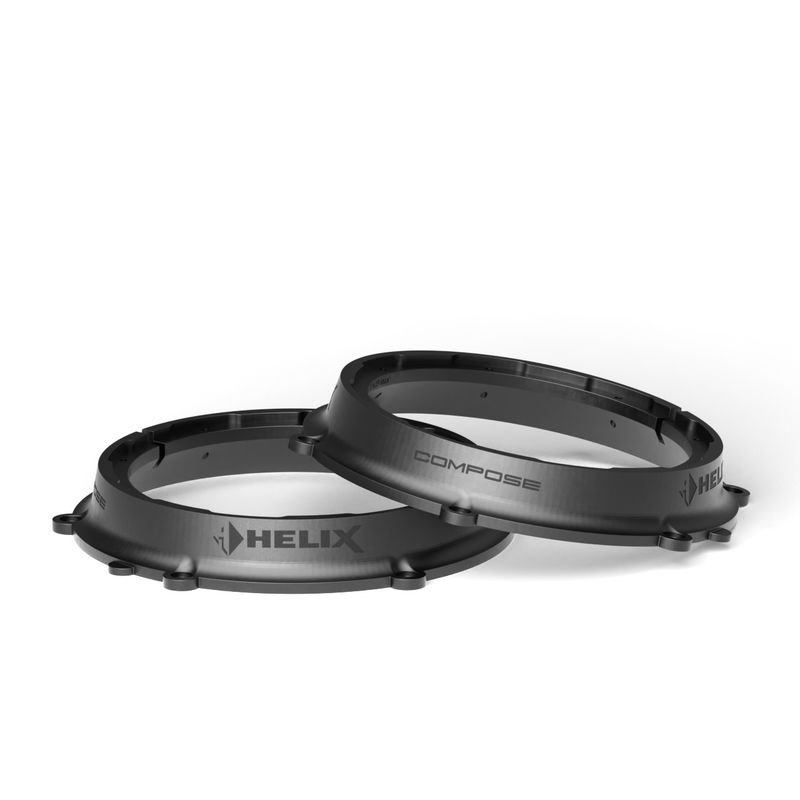

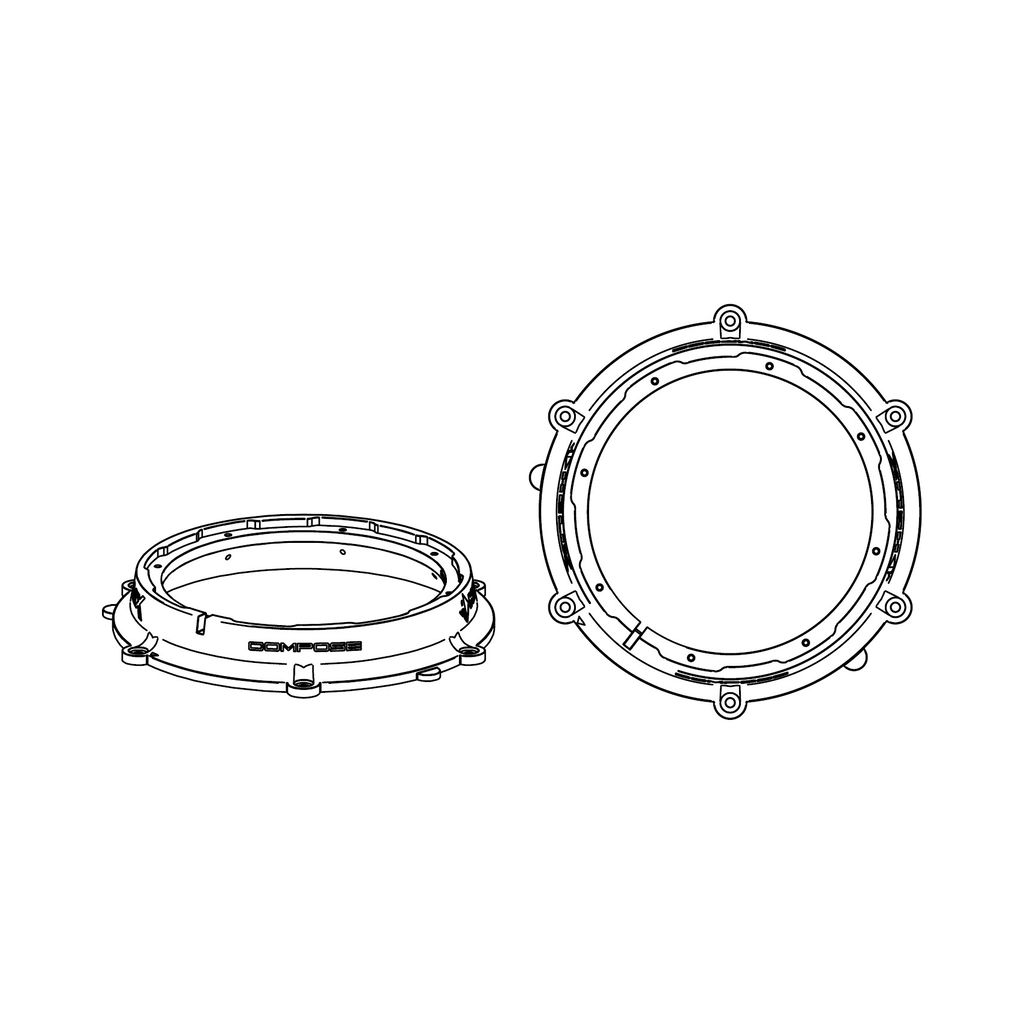

FlexMount is our patented mounting system, based on specially developed adaptor rings.
These turn your universal 8″ / 200 mm HELIX COMPOSE woofer with FlexMount200 technology into a car-specific speaker, allowing an easy and acoustically optimized installation in the original mounting position of the vehicle.

The adaptors are manufactured in-house using state-of-the-art FDM 3D printing process. The special material used is perfectly adapted to automotive applications and is characterized in particular by its extremely high strength and rigidity. Due to the special material properties, our FlexMount adaptors are extremely resistant to weathering, UV radiation, oils and greases. In addition, it covers the extremely wide automotive temperature range from -40° C to over + 90° C, which guarantees durability and dimensional stability even under the most difficult conditions.

Features
Vehicle-specific adapter ring for a professional and acoustically optimized integration of the 8” / 200 mm HELIX COMPOSE woofer with FlexMount200 technology in the original mounting location of the vehicle
Easy installation and secure fixation due to torsion-resistant adaptor ring
Complex construction for high stability, durability and optimized acoustic characteristics
Including gaskets to prevent acoustic short circuits and the ingress of moisture
In-house production using state-of-the-art FDM 3D printing process
Made in Germany

Compatibility

Speaker:

Ci7 W200FM-S3
Ci3 W200FM-S3
Ci3 W200FM-S2
Ci3 K200.2FM-S3
Ci3 K200.2FM-S2

Car models:

Porsche 911 (991) 09/2011 - 12/2015 w/Standard Soundsystem, BOSE Soundsystem or Burmester Sound System
Front: Ci7 W200FM-S3 , Ci3 W200FM-S3 , Ci3 W200FM-S2

Porsche 911 (991 mk2) 12/2015 - 12/2019 w/Standard Soundsystem, BOSE Soundsystem or Burmester Sound System
Front: Ci7 W200FM-S3 , Ci3 W200FM-S3 , Ci3 W200FM-S2

Porsche 911 (992) 01/2020 -- w/Standard Soundsystem, BOSE Soundsystem, or Burmester Sound System
Front: Ci7 W200FM-S3 , Ci3 W200FM-S3 , Ci3 W200FM-S3

Porsche 911 (992) 01/2020 -- w/MIB 3
Front: Ci3 K200.2FM-S2 , Ci3 K200.2FM-S3 , Ci7 W200FM-S3 , Ci3 W200FM-S3 , Ci3 W200FM-S3

Porsche Boxster (987) 11/2004 - 04/2012 w/Standard Soundsystem or BOSE Soundsystem
Front: Ci7 W200FM-S3 , Ci3 W200FM-S3 , Ci3 W200FM-S2

Porsche Boxster (981) 04/2012 - 01/2016 w/Standard Soundsystem or BOSE Soundsystem
Front: Ci7 W200FM-S3 , Ci3 W200FM-S3 , Ci3 W200FM-S2

Porsche 718 Boxster (982) 01/2016 -- w/Standard Soundsystem, BOSE Soundsystem or Burmester Sound System
Front: Ci7 W200FM-S3 , Ci3 W200FM-S3 , Ci3 W200FM-S2

Porsche Cayenne 9PQA/955 FL 02/2007 - 05/2010 w/Standard Soundsystem or BOSE Soundsystem
Front: Ci7 W200FM-S3 , Ci3 W200FM-S3 , Ci3 W200FM-S2

Porsche Cayenne 92A/958 05/2010 - 06/2014 w/Standard Soundsystem, BOSE Soundsystem or Burmester Sound System
Front: Ci7 W200FM-S3 , Ci3 W200FM-S3 , Ci3 W200FM-S2

Porsche Cayenne 92A/958 FL 06/2014 - 08/2017 w/Standard Soundsystem, BOSE Soundsystem or Burmester Sound System
Front: Ci7 W200FM-S3 , Ci3 W200FM-S3 , Ci3 W200FM-S2

Porsche Cayenne 9YA/536 08/2017 -- w/Standard Soundsystem, BOSE Soundsystem, Burmester Sound System or MIB3
Front: Ci7 W200FM-S3 , Ci3 W200FM-S3 , Ci3 W200FM-S2

Porsche Cayman 987C 11/2005 - 01/2013 w/Standard Soundsystem or BOSE Soundsystem
Front: Ci7 W200FM-S3 , Ci3 W200FM-S3 , Ci3 W200FM-S2

Porsche Cayman 981C 01/2013 - 04/2016 w/Standard Soundsystem or BOSE Soundsystem
Front: Ci7 W200FM-S3 , Ci3 W200FM-S3 , Ci3 W200FM-S2

Porsche 718 Cayman (982) 04/2016 -- w/Standard Soundsystem, BOSE Soundsystem or Burmester Sound System
Front: Ci7 W200FM-S3 , Ci3 W200FM-S3 , Ci3 W200FM-S2

Porsche Macan 95B 01/2014 - 05/2017 w/Standard Soundsystem, BOSE Soundsystem or Burmester Sound System
Front: Ci7 W200FM-S3 , Ci3 W200FM-S3 , Ci3 W200FM-S2

Porsche Macan 95B FL 05/2017 -- w/Standard Soundsystem, BOSE Soundsystem or Burmester Sound System
Front: Ci7 W200FM-S3 , Ci3 W200FM-S3 , Ci3 W200FM-S2

Porsche Panamera (970) 09/2009 - 06/2013 w/Standard Soundsystem, BOSE Soundsystem or Burmester Sound System
Front: Ci7 W200FM-S3 , Ci3 W200FM-S3 , Ci3 W200FM-S2

Porsche Panamera (970 FL) 06/2013 - 06/2016 w/Standard Soundsystem, BOSE Soundsystem or Burmester Sound System
Front: Ci7 W200FM-S3 , Ci3 W200FM-S3 , Ci3 W200FM-S2

Porsche Panamera (971) 06/2016 - 08/2020 w/Standard Soundsystem, BOSE Soundsystem or Burmester Sound System
Front: Ci7 W200FM-S3 , Ci3 W200FM-S3 , Ci3 W200FM-S2

Porsche Panamera (971) 06/2016 - 08/2020 w/Standard Soundsystem, BOSE Soundsystem or Burmester Sound System
Front: Ci7 W200FM-S3 , Ci3 W200FM-S3 , Ci3 W200FM-S2

Porsche Panamera (971 FL) 08/2020 -- w/Standard Soundsystem, BOSE Soundsystem or Burmester Sound System
Front: Ci7 W200FM-S3 , Ci3 W200FM-S3 , Ci3 W200FM-S2

Porsche Panamera (971 FL) 08/2020 -- w/MIB3
Front: Ci3 K200.2FM-S2 , Ci3 K200.2FM-S3 , Ci7 W200FM-S3 , Ci3 W200FM-S3 , Ci3 W200FM-S3 , Ci3 W200FM-S2


Scope of delivery
2 x FlexMount200 adaptor ring
2 x Speaker gasket
2 x Car body gasket
1 x Mounting material
