HELIX CFMK100 JLR.1 ( JAGUAR / LAND ROVER )

FlexMount is our patented mounting system, based on specially developed adaptor rings.
With just one turn, your universal 4″ / 100 mm HELIX COMPOSE midrange speaker with FlexMount100 technology becomes car-specific, allowing an easy and acoustically optimized installation in the original mounting position of the vehicle.

Features
Vehicle-specific adapter ring for a professional and acoustically optimized integration of the 4” / 100 mm HELIX COMPOSE midrange with FlexMount100 Technology in the original mounting location of the vehicle
Easy installation and secure fixation of the midrange in the adaptor ring thanks to patented bayonet lock
Including gaskets to prevent acoustic short circuits

Compatibility

Speaker:

Ci7 M100FM-S3
Ci3 M100FM-S3
Ci3 K100.2FM-S3
Ci3 C100-2FM-S3

Car models:

Jaguar F-Type X152 05/2013 -- m/Meridian Sound System
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3

Jaguar XJ X351 09/2009 - 09/2019 m/Meridian Sound System
Rear: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Center: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3

Land Rover Defender L663 02/2020 -- m/Meridian Sound System or Meridian Surround Sound System
Center: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3

Land Rover Discovery V 10/2017 -- m/Standard Sound System
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3

Land Rover Discovery V L465 10/2017 -- m/Meridian Sound System or Meridian Surround Sound System
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3
Center: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3

Range Rover Evoque L538 01/2011 - 2017 m/Standard Sound System or Meridian Sound System
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3

Range Rover Evoque L551 2019 -- m/Standard Sound System or Meridian Sound System
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3

Range Rover Sport L494 09/2013 - 09/2022 m/Meridian Sound System, Meridian Signature Reference Sound System or Meridian Surround Sound System
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3

Range Rover Sport L461 09/2022 -- m/Meridian Sound System, Meridian Signature Reference Sound System or Meridian Surround Sound System
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3

Range Rover Velar L560 09/2017 - 01/2023 m/Standard Sound System, Meridian Sound System or Meridian Surround Sound System
Front: Ci7 M100FM-S3 , Ci3 M100FM-S3 , Ci3 C100.2FM-S3

Further information about the vehicle compatibility can be found in COMPOSE Finder (coming mid of May)
www.audiotec-fischer.de/en

Scope of delivery

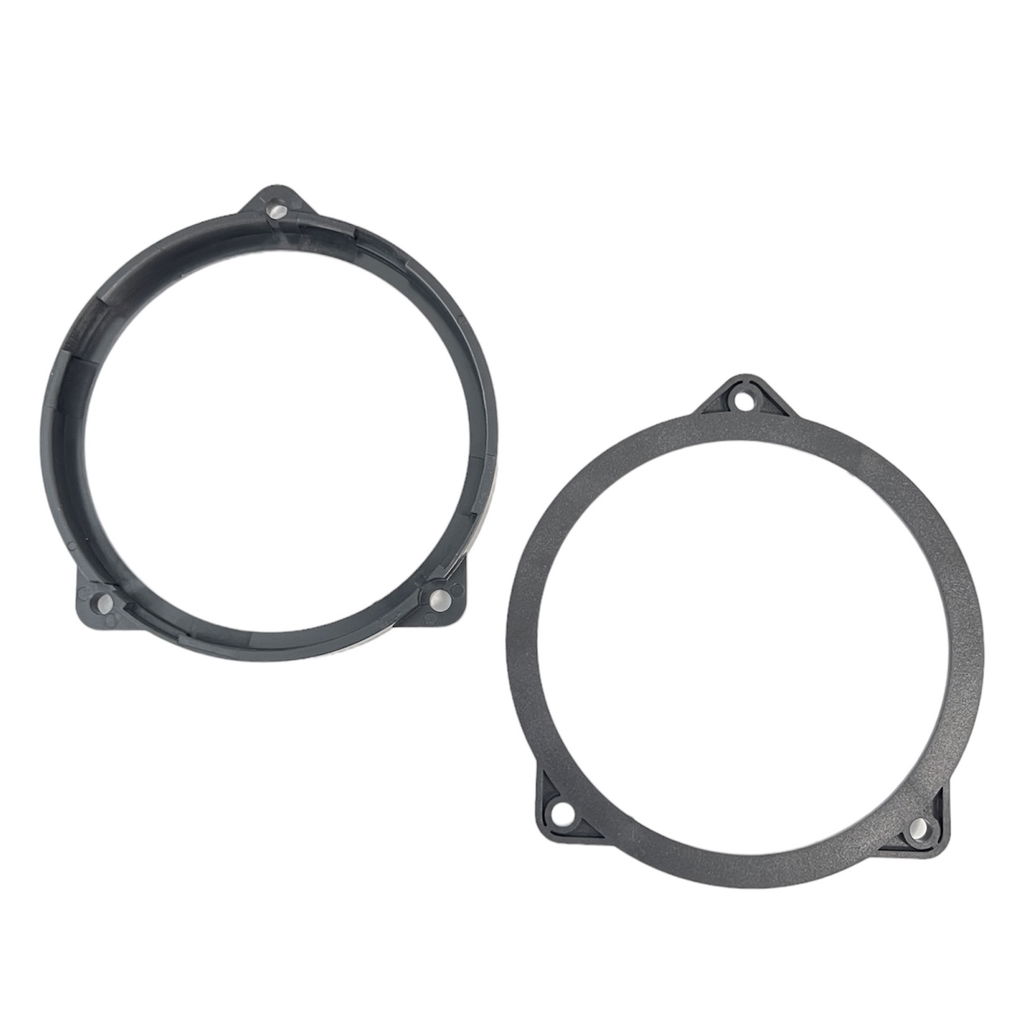

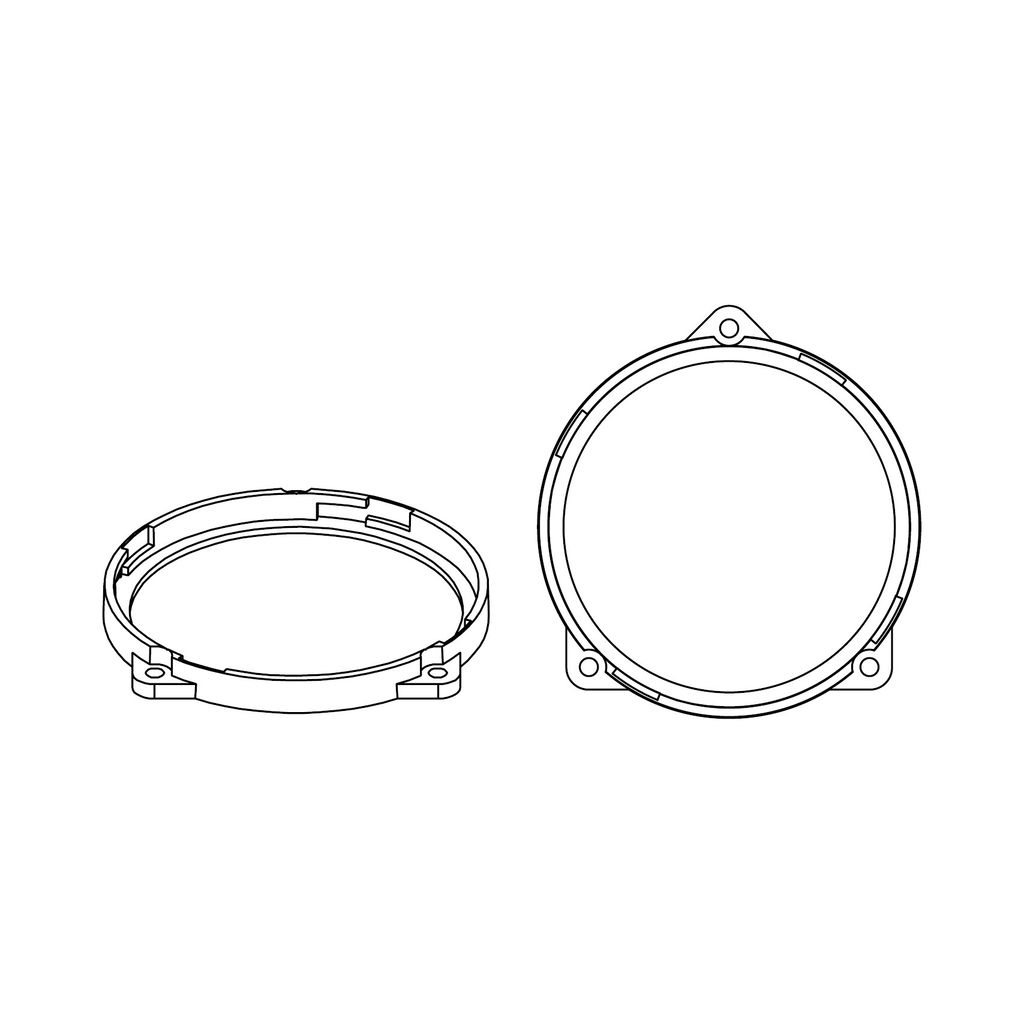

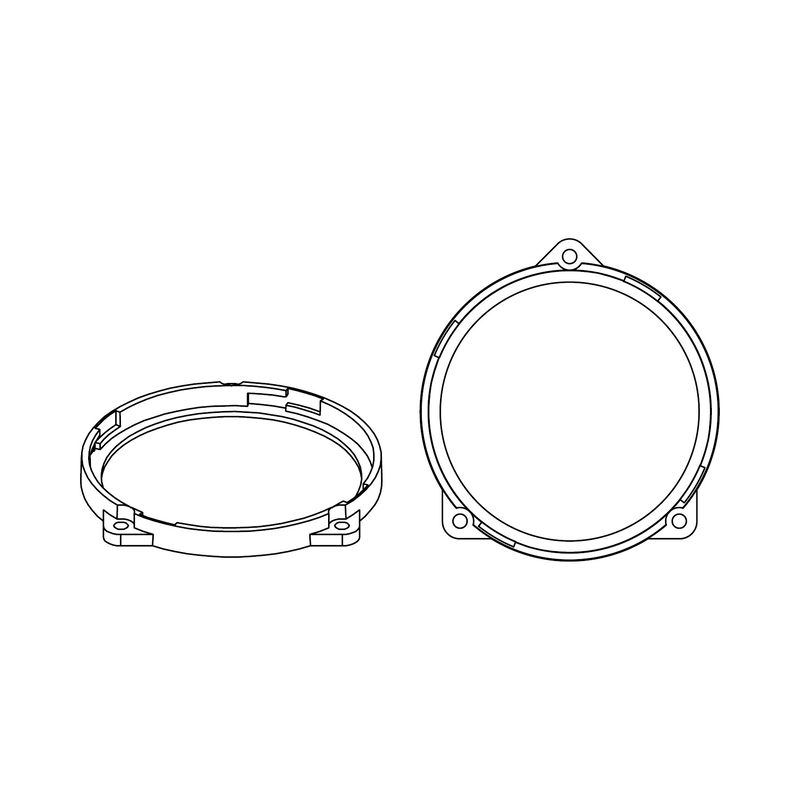

2 x FlexMount100 adaptor ring
2 x Gasket
