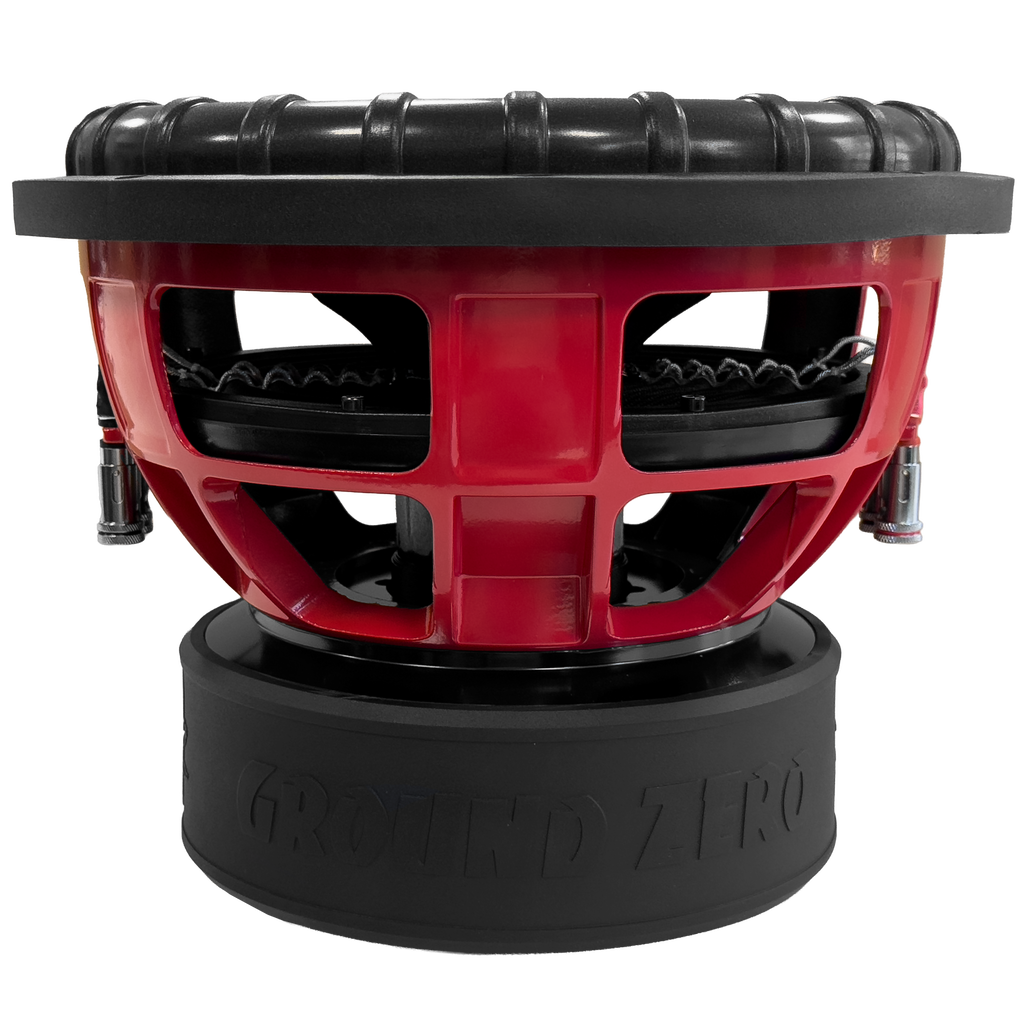

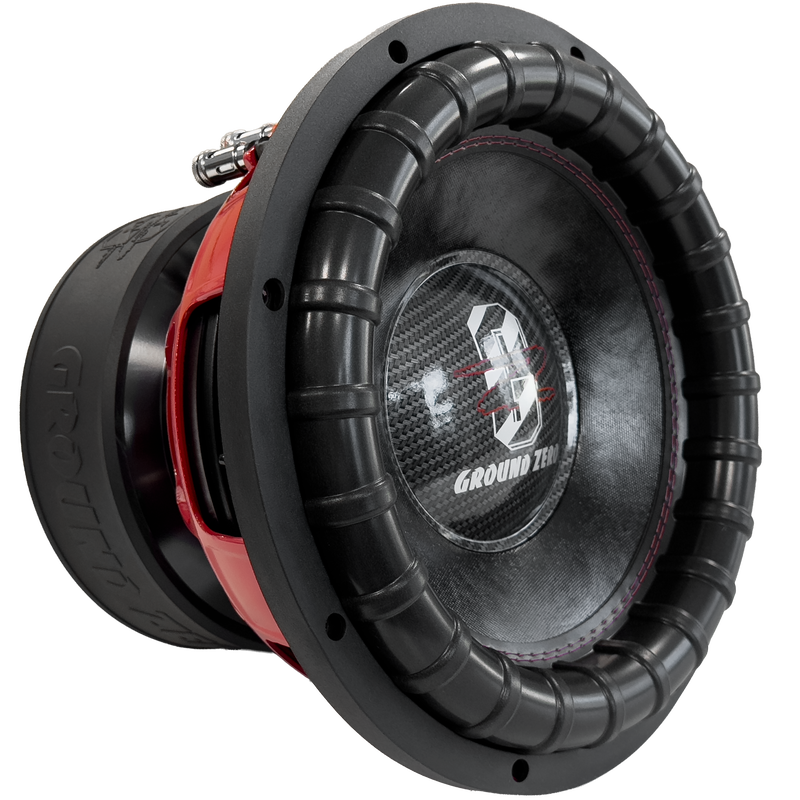

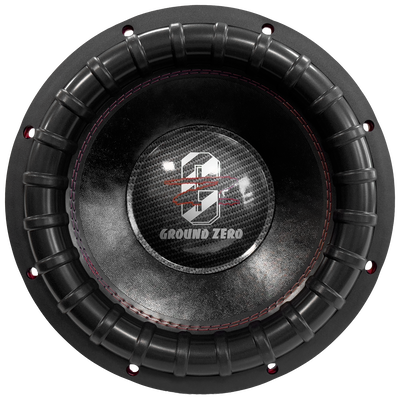

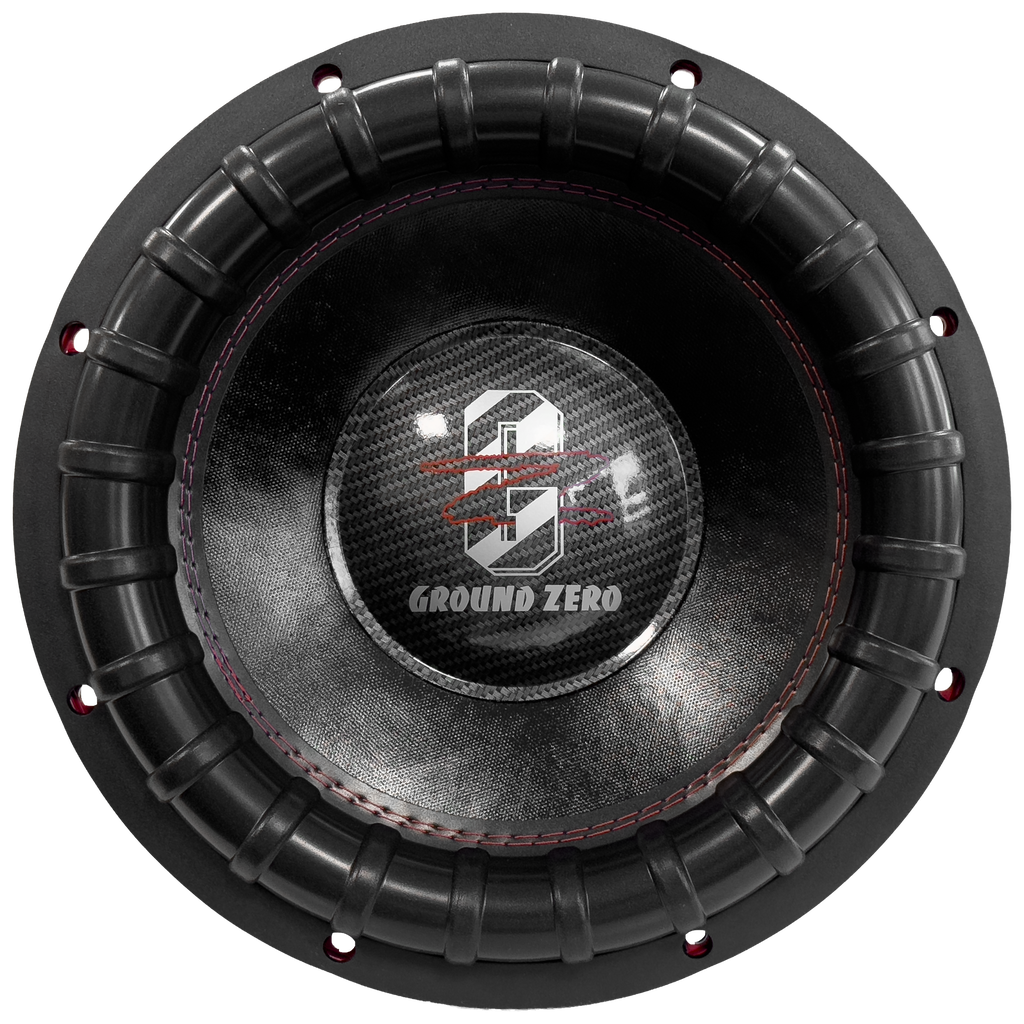

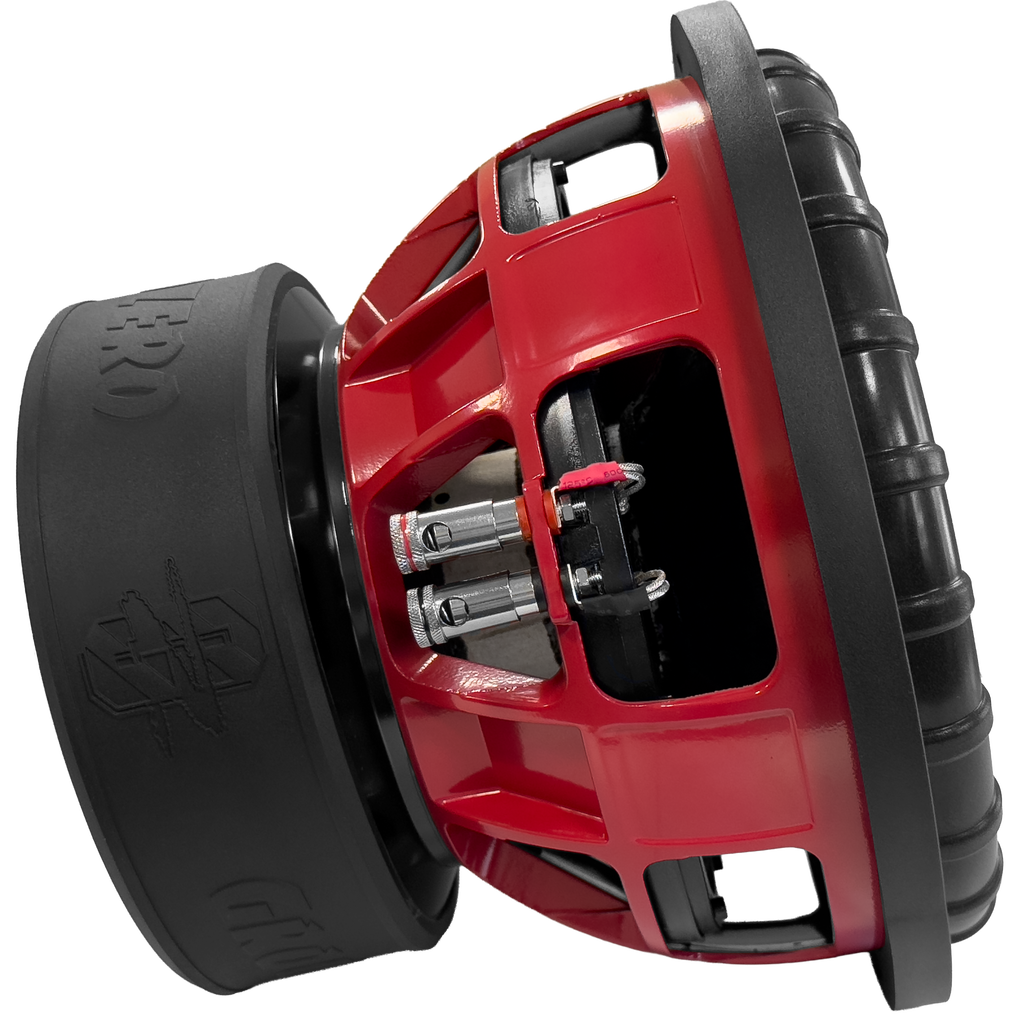

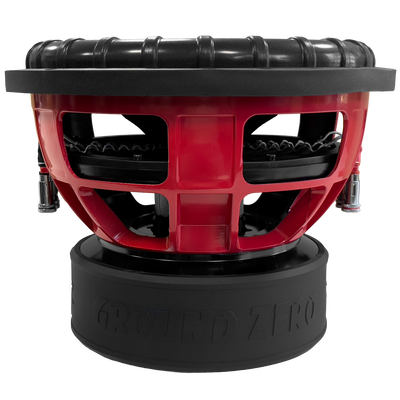

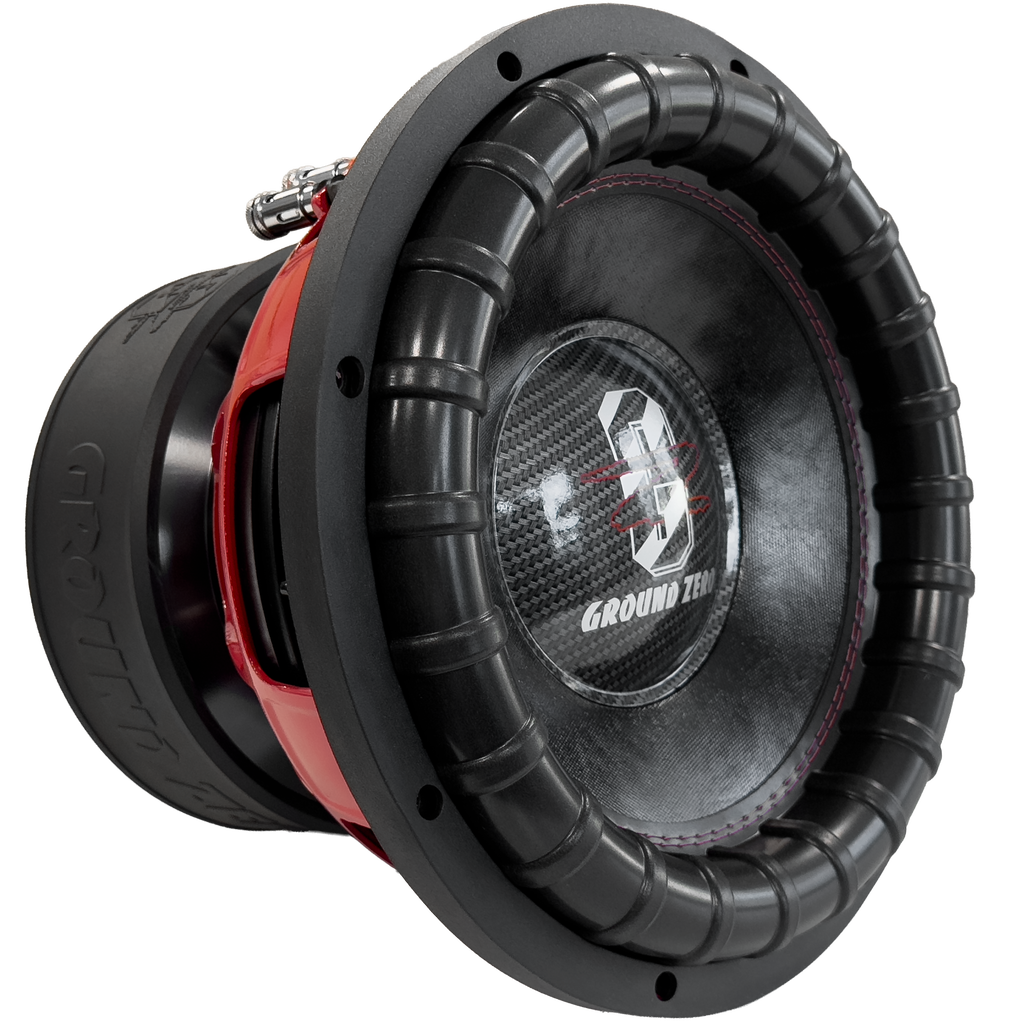

Ground Zero GZAW 12-2.5K-D2

New high quality SPL subwoofer = GZAW

If you want to play LOUD, GZAW is the perfect choice! Strong cast basket, fiber reinforced non pressed paper cone,
75 mm / 3” voice coil, High-roll U-surround

Recommented enclosure: 80-110l
6″ aeroport 44cm

Power handling 2500 W
Voice coil: 75mm / 3″
Impedance: 2x2 ohm
Fs: 29,4 Hz
Qms: 4.49
Qes: 0.24
Qts: 0.22
Vas: 36.40 L / 1.29 cu.ft
Mms: 369.2 g
Xmax (p2p) 30mm / 1.18″
Efficienty: 87 dB
Bl: 31.84

Outer diameter: 317mm / 12.48″
Mounting cut out: 282mm / 11.10″
Mounting depht: 217mm / 8.54″
